The Micro C

The future of X-ray is in your hands with the world’s first handheld, dynamic digital radiographic instrument.8

Micro C handheld medical imaging device

X-Ray Imaging Reimagined

INNOVATIVE TECHNOLOGY

The world’s first handheld dynamic digital x-ray system is available1 now. Micro C is a fast, safe, and smart radiographic imaging instrument. The device brings incredible technology directly to the point of care. Micro C’s impressive sharpness, incredible clarity, and low radiation profile make x-ray available wherever it is needed.

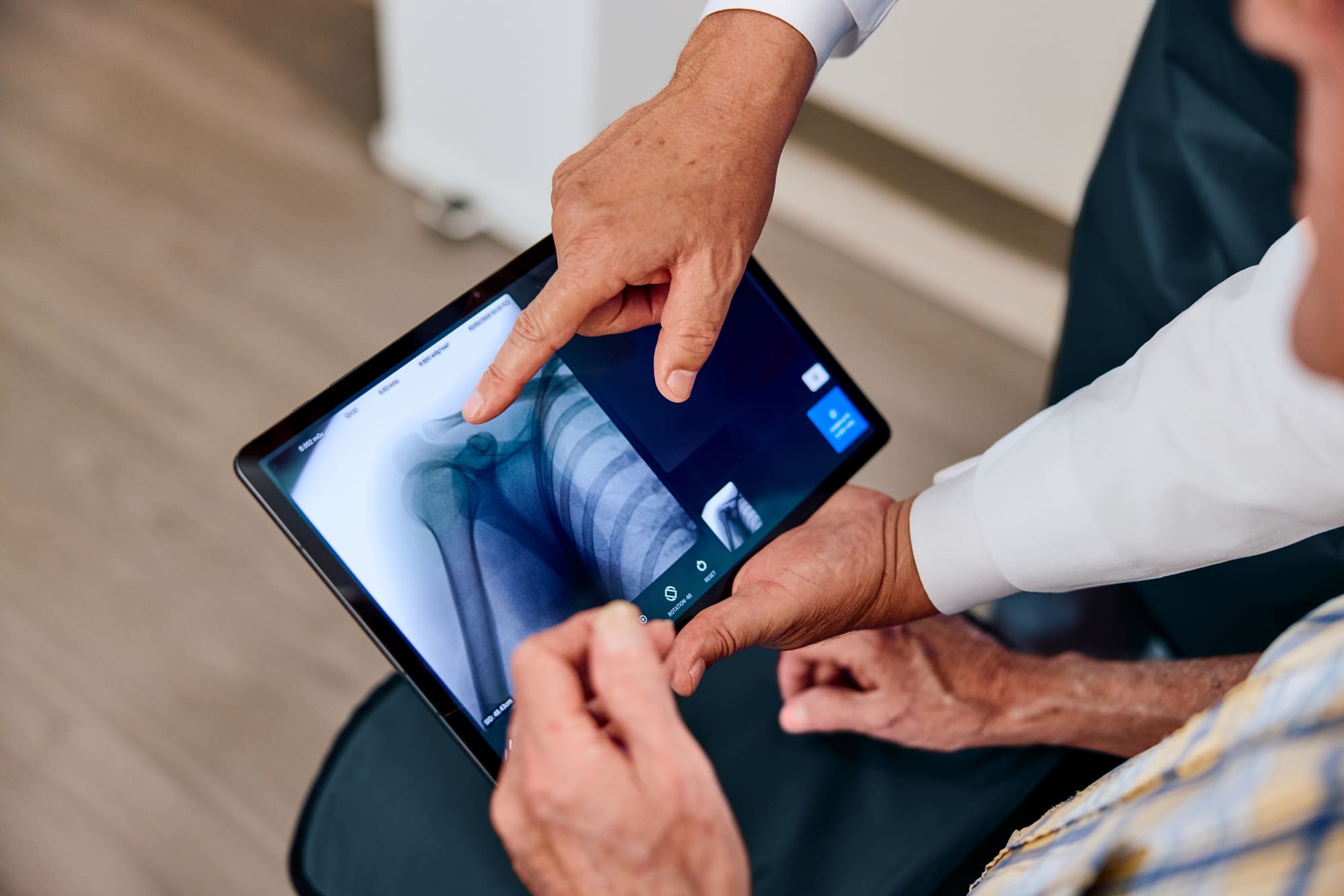

X-Rays Displayed on Handheld Devices

The Device

HIGH RESOLUTION

Micro C is used for radiographic imaging and DDR of the distal extremity in adults and children. The device can be used to capture high resolution x-ray of any anatomy from the shoulder to the fingers and the knee to the toes. Micro C can be used in both clinical and surgical settings.7

  • MAX OUTPUT OF 60 kV AT 1.0 mA FOR 99 ms
  • TYPICAL X-RAY CAPTURE IS 11.6 µSv
  • 10 SECOND DDR CAPTURE IS 0.58 mGy
Micro C handeheld x-ray device

Reimagining Medical Imaging

EXCEPTIONAL CLARITY

Result of Thumb X-ray Using Micro C

Thumb DDR 8

X-ray of Hand Using Micro C

Hand, 9.7 µGy

Image of percutaneous pinning of Wrist fracture Using Micro C, 9.7 µGy

Wrist Pinning, 9.7 µGy

Wrist DDR

Wrist DDR 8

Wrist Rotation DDR

Wrist Rotation DDR 8

Proximal Ulna, 9.7 µGy

Proximal Ulna, 9.7 µGy

Elbow, Lateral, 9.7 µGy

Elbow, Lateral, 9.7 µGy

Elbow, Lateral, 9.7 µGy

Elbow, Lateral, 9.7 µGy

Elbow DDR

Elbow DDR 8

Foot, 13.7 µGy

Foot, 13.7 µGy

Foot, Oblique, 13.7 µGy

Foot, Oblique, 13.7 µGy

Midfoot, 13.7 µGy

Midfoot, 13.7 µGy

Ankle, Lateral, 13.7 µGy

Ankle, Lateral, 13.7 µGy

Foot DDR

Foot DDR8

Knee AP, 23.4 µGy

Knee AP, 23.4 µGy

Knee Lateral, 23.4 µGy

Knee Lateral, 23.4 µGy

Knee DDR

Knee DDR 8

Shoulder, Grashey View, 17.4 µGy

Shoulder, Grashey View, 17.4 µGy

EXPERIENCE MICRO C

WHY THE MICRO C

Fast

Micro C brings live, dynamic digital radiography directly to the point-of-care. Struggling with technique settings is a thing of the past. Easy ergonomics enhance workflow and speed image capture.

Safe

Micro C creates low dose, high quality images and DDR. As a low-dose system, Micro C promotes safety for providers, patients, and staff.

Smart

Our innovative x-ray source provides dynamic imaging and impressive clarity. Every device is cloud-connected and ready for on-demand image and study management, giving providers instant access to the information they need anywhere, at any time.

Compare specs

see the difference

See how Micro C brings the future of x-ray to your hand.3 8

MICRO C VS TRADITIONAL C ARM

DEVICE
MICRO C
C ARM
Size
1.1 ft
7.5 ft
Weight
7 lbs
1,058 lbs
Resolution
258 px/in
165 px/in
Spot Size
75 µm
3,000 µm
Scatter
<3 ft
16.2 ft
Hand
9.7 µGy
31.4 µGy
Knee
23.4 µGy
498 µGy

MICRO C VS MINI C ARM

DEVICE
MICRO C
MINI C
Size
1.1 ft
5.4 ft
Weight
7 lbs
485 lbs
Resolution
2.25 MP
1.31 MP
Spot Size
75 µm
330 µm
Scatter
<3 ft
7.8 ft
Hand
9.7 µGy
51.6 µGy
Knee
23.4 µGy
180.0 µGy
Illustration of Stand

MICRO C VS PORTABLE MINI C ARM

DEVICE
MICRO C
PORTABLE MINI C ARM
Size
1.1 ft
1.75 ft
Weight
7 lbs
16 lbs
Resolution
65 lines @ 50 kV
47 lines @ 60 kV
Image Size
2.25 MP
2.25 MP
Max Output
60.0 W
29.6 W
Free space
40 cm
34 cm
Scatter
<3 ft
6 ft
Illustration of Stand

Wrist Sabilitzation, 6.3 µGy

Innovations

EASY ERGONOMICS

Close-up of Micro C Imager

The operator can easily capture, adjust, and refine radiographics with one hand, keeping the other hand free for anatomical manipulation or tool execution.

DDR

Close up Using Micro C Display

Dynamic Digital Radiography captures crisp and clear live x-rays that give the surgeon the image quality necessary to execute today’s modern procedures.8

HIGH RESOLUTION DETECTOR

Product Photo Handle Micro C

Capturing high quality images requires a high resolution panel. Micro C uses a sensitive, high quality detector. The 100 µm pixel pitch and and 2.25 MP capture size generates fantastic radiographs and live DDR.

DIGITAL CONTROL PANEL

Photo of Micro C Display

Traditional x-ray machines require a plethora of buttons, dials, and inputs to create an image. Micro C can automatically adjust to suit the needs of the surgeon, only requiring three simple buttons for pinpoint control.

Low scatter means more scenarios

SMALL SCATTER AREA

The Micro C has an extremely small scatter area, falling off to 0.01 µGy at 1m per single shot exposure. The Micro C does not require a lead-lined room6 and providers are well protected as exposure within the zone of occupancy is below 0.03 µGy per exposure.

  1. The Micro C is US FDA cleared and is available in the United States. Products may not be available for sale in all regions. Orders will be taken only in the regions where the product is cleared or approved by local regulatory authorities, as required.
  2. US FDA 510(k) K212654. See Instructions for Use for full device indications and a complete list of warnings, precautions, and contraindications.
  3. Based on data from representative Mini C and C Arm devices. Data listed may not be representative of all other radiographic Mini C and C Arm devices.
  4. All Micro C dose values are based of typical dose output measurements seen on M01 Device. Actual outputs will vary based on the anatomy imaged.
  5. Dependent on specific state and local regulations.
  6. The Micro C Medical Imaging System, M01 is a handheld and portable general purpose X-ray system that is indicated for use by qualified/trained clinicians on adult and pediatric patients for taking diagnostic static and serial radiographic exposures of extremities. The device is not intended to replace a radiographic system that has both variable tube current and voltages (kVp) in the range that may be required for full optimization of image quality and radiation exposure for different exam types.
  7. Micro C provides dynamic digital imaging but is not intended as a replacement for fluoroscopy.
